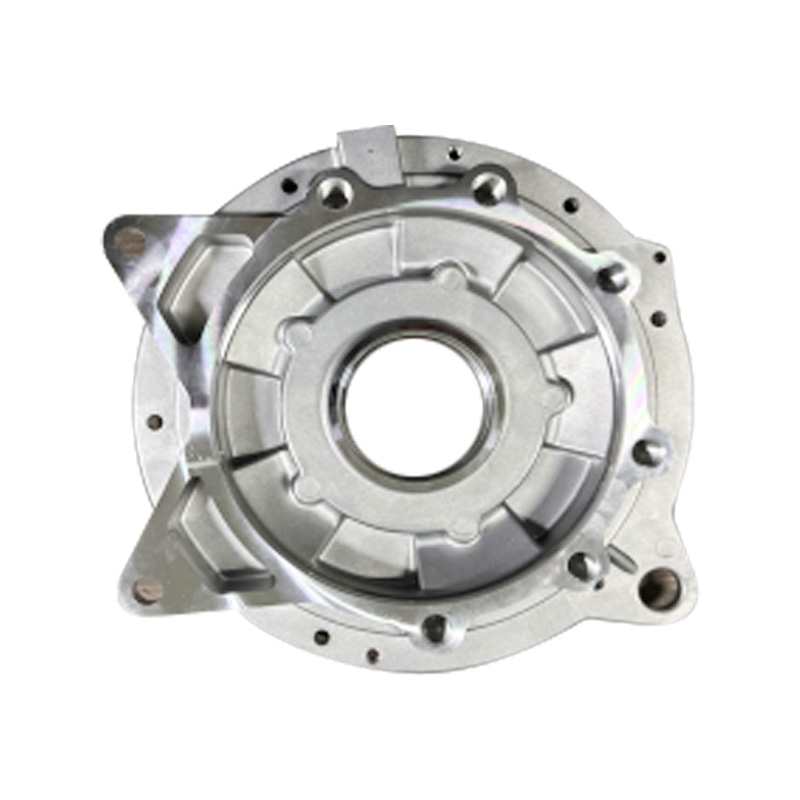

Aluminum alloy electric drive system die casting

Product Advantages

• Lightweight Design: The aluminum alloy material is durable and lightweight, significantly reducing overall vehicle weight and enhancing driving range.
• High Heat Dissipation: Excellent thermal conductivity of aluminum alloy keeps the electric drive system cool during high-load operation, preventing overheating.
• Corrosion Resistance: Surface treatments like anodizing enhance stability, allowing the parts to withstand challenging environments over long periods.
• High Strength and Precision: High-pressure die casting ensures structural strength and dimensional accuracy, reducing the need for additional machining.

Applications
These components are widely used in NEV motor housings, control module casings, cooling elements, and other parts, supporting stable, efficient electric drive performance.

Manufacturing Process

• High-Pressure Die Casting: Enables precise forming of complex structures and details.
• Precision Mold Design: Ensures parts meet strict tolerance requirements for high-precision assembly.

Basic Specifications

• Material: Aluminum alloy (e.g., AlSi10Mg, ADC12)
• Dimensions: Customizable with a tolerance of ±0.05mm
• Surface Treatments: Options include anodizing, powder coating, and electrophoresis
• Weight: Lightweight to meet NEV design requirements
• Thermal Conductivity: Ensures effective heat dissipation

Summary
Jinyao’s electric drive system die-cast parts provide an ideal solution for NEV electric drive systems, featuring lightweight, high heat dissipation, and corrosion-resistant properties, enabling more efficient transmission and prolonged vehicle lifespan.
