Aluminum Alloy High Pressure Die Casting Mold Manufacturing: Precision Mold Design and Engineering Optimization

In aluminum alloy high pressure die casting mold manufacturing, precision mold design and engineering optimization form the cornerstone of casting quality, production efficiency, and mold service life. High pressure die casting is characterized by high injection speed, extreme pressure, and short forming cycles, which place stringent demands on mold structural integrity, dimensional accuracy, and thermal stability. Only through thorough design planning and engineering optimization at the early stage can stable, repeatable, and high-quality die casting production be achieved.

Ningbo Jinyao Machinery Co., Ltd. adheres to a product-oriented and process-driven design philosophy. At the initial project stage, the engineering team communicates closely with customers to fully understand application scenarios, performance requirements, appearance standards, and expected production volumes. Based on this information, customized mold design solutions are developed to ensure that the mold structure fully supports product functionality and mass production needs. For aluminum alloy components with complex geometries, thin walls, or high precision requirements, special attention is given to parting line layout, gating system design, and demolding mechanisms to ensure stability under high-pressure operating conditions.

Advanced CAD and CAE simulation technologies are widely applied during the design phase at Ningbo Jinyao Machinery Co., Ltd. Mold flow analysis is used to simulate molten aluminum filling behavior, pressure distribution, temperature gradients, and solidification processes. Through these simulations, potential defects such as porosity, shrinkage, cold shuts, or stress concentration can be identified and corrected before mold manufacturing begins. This predictive engineering approach significantly reduces trial-and-error costs, minimizes mold modification cycles, and shortens overall project lead time.

Cooling system design is another critical aspect of engineering optimization. Based on wall thickness distribution and heat concentration zones, cooling channels are strategically arranged to achieve uniform heat dissipation during high-speed production. Efficient thermal management improves dimensional stability, surface quality, and cycle time consistency. Through continuous design optimization and engineering refinement, Ningbo Jinyao Machinery Co., Ltd. delivers aluminum alloy high pressure die casting molds that combine high precision, high efficiency, and long service life.

High-Quality Mold Materials and Advanced Machining Processes

Aluminum alloy high pressure die casting molds operate under repeated exposure to high temperature, high pressure, and rapid thermal cycling. Therefore, the selection of mold materials and the application of advanced machining processes are decisive factors in ensuring mold durability, strength, and long-term performance. Ningbo Jinyao Machinery Co., Ltd. places strict quality control on both material selection and manufacturing processes to guarantee reliable mold performance.

For mold materials, the company primarily uses internationally recognized hot work tool steels such as H13 and DIEVAR. These materials offer excellent resistance to thermal fatigue, cracking, and wear, making them ideal for high pressure aluminum die casting applications. All incoming raw materials undergo strict inspection to ensure uniform chemical composition and stable internal structure. Based on specific customer requirements and production conditions, customized material selection recommendations are provided to achieve an optimal balance between performance and cost efficiency.

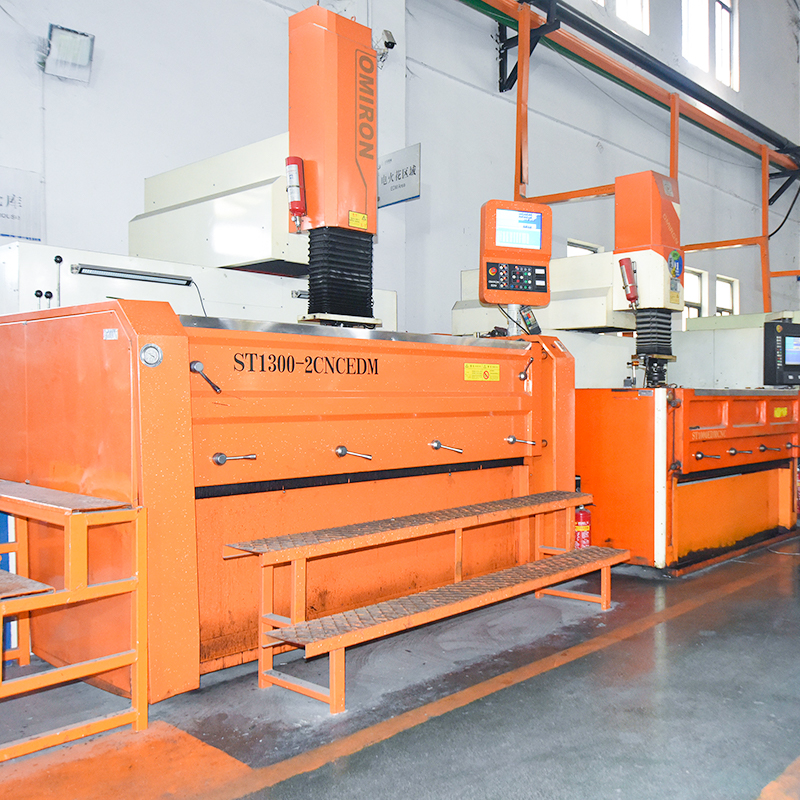

During manufacturing, Ningbo Jinyao Machinery Co., Ltd. is equipped with advanced CNC machining centers and automated production equipment. Core processes include CNC milling, EDM (Electrical Discharge Machining), and wire cutting, which enable the accurate production of complex cavities, fine details, and high-quality surface finishes. These advanced machining technologies ensure tight dimensional tolerances and high consistency, effectively reducing post-processing adjustments and rework.

Heat treatment and surface strengthening processes are essential steps in enhancing mold performance. Depending on application requirements, processes such as quenching, tempering, and nitriding are applied to improve hardness, wear resistance, corrosion resistance, and resistance to aluminum soldering. By integrating high-quality materials, precision machining, and optimized surface treatment technologies, Ningbo Jinyao Machinery Co., Ltd. provides high-strength aluminum alloy die casting molds with extended service life and reduced maintenance costs.

Quality Control, Application Areas, and Long-Term Performance Assurance

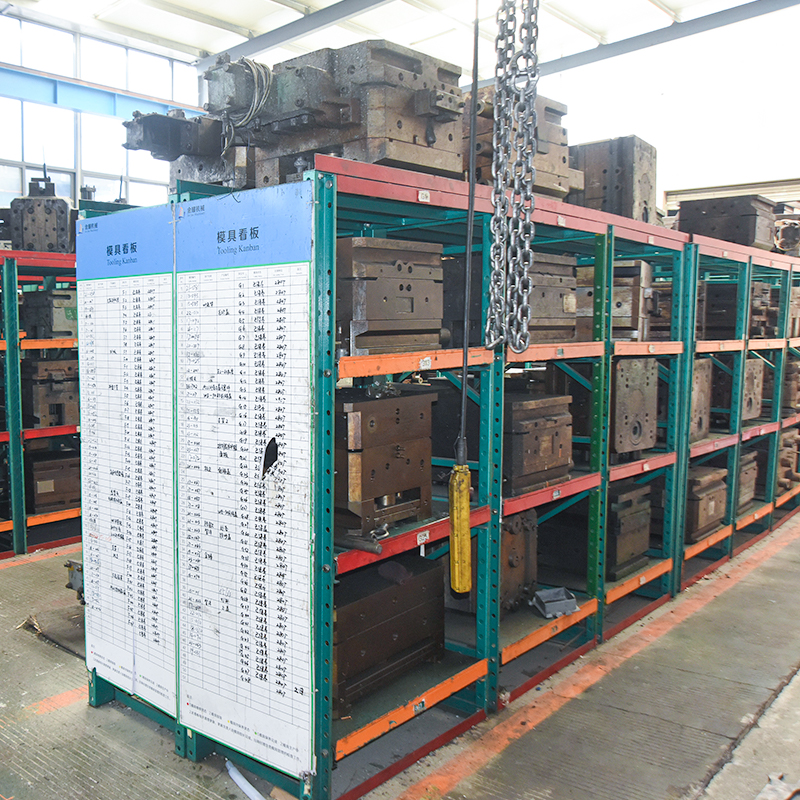

A comprehensive quality control system and reliable long-term performance assurance are key indicators of a professional aluminum alloy high pressure die casting mold manufacturer. Ningbo Jinyao Machinery Co., Ltd. has established a complete quality management system covering design review, machining inspection, mold assembly, and trial production to ensure that every mold meets strict technical standards before delivery.

After machining and assembly, critical dimensions and functional components are inspected using high-precision measuring equipment. Dimensional tolerances can be strictly controlled within ±0.01 mm to ensure accurate assembly and stable operation. Trial casting is then conducted under actual production conditions to evaluate mold filling performance, surface quality, cooling efficiency, and production stability. Any issues identified during testing are promptly optimized by the engineering team to ensure the mold reaches its best operational condition.

In terms of application areas, aluminum alloy high pressure die casting molds manufactured by Ningbo Jinyao Machinery Co., Ltd. are widely used in the production of automotive components, home appliance housings, industrial equipment parts, and other high-precision aluminum and plastic components. These industries require consistent quality, structural strength, and excellent surface finish, all of which depend on high-performance mold solutions.

To provide a clearer overview of the company’s capabilities, the following table summarizes the key service advantages and technical parameters of aluminum alloy high pressure die casting molds produced by Ningbo Jinyao Machinery Co., Ltd.:

Through continuous technological innovation, strict quality control, and professional after-sales support, Ningbo Jinyao Machinery Co., Ltd. is committed not only to delivering high-quality die casting molds but also to becoming a long-term, reliable mold solution partner for customers worldwide.
